Topworx Valve Position Indicator TVF-M2WGNPM Intrinsically Safe

Name: Topworx Valve Position Indicator TVFM2WGNPM Intrinsically Safe
Brand: TOPWOEX limit Switch
Price: 520 USD

Buy cheap Topworx Valve Position Indicator TVF-M2WGNPM Intrinsically Safe product

Brand Name : TOPWOEX limit Switch

Model Number : TVF-M2WGNPM

Place of Origin : china

MOQ : 1

Price : $520

Form : SPDT

Terminal Maximum wire size : 4mm squared (14AWG)

Conforming to Standards : UL: 1054

Contact Resistance : 15mΩ max. (initial)

Contact Now

Product Description:

The TopWorx™ TVF shines as the perfect choice for non - incendive applications. When it comes to valve monitoring and control, the TX - Series switchboxes are a top pick. They pack full functionality into compact, direct - mount enclosures, saving space and simplifying installation. With a diverse range of position sensors, integral solenoid valves, and bus networks, the TX - Series caters to all hazardous areas. Its IECEx, ATEX, and UL certifications ensure top - notch safety and reliability. The GO Switch within the TX - Series line is a game - changer. It maintains the reliability of existing models while introducing enhanced features. The 36 GO Switch gives you the flexibility to choose between 2 or 4 switch configurations for TX and TV enclosures. And with optional integrated solenoid valves in the 2 - switch setup, you get even more precise control. Ideal for industries like petrochemicals, manufacturing, and energy.

Product Specifications:

Feature	OPTION M	OPTION K
Switch Type	Mechanical	Mechanical
Sealed	No	No
Form	SPDT	SPDT
Terminal Maximum wire size	4mm squared (14AWG)	4mm squared (14AWG)
Electrical Rating	10A@125VAC or 250VAC	0.1A@125VAC MAX
Conforming to Standards	UL: 1054	UL: 1054
Contact Resistance	15mΩ max. (initial)	15mΩ max. (initial)
Insulation Resistance	100MΩ min. (at 500V DC)	-100MΩ min. (at 500V DC)

Product Features:

Intrinsically Safe and suitable for all environments
Variety of Bus Networks and Sensor Options
Impact resistant highly visable display
Color coded twist-set cams provide the easiest adjustment
Reliability in environment extermes

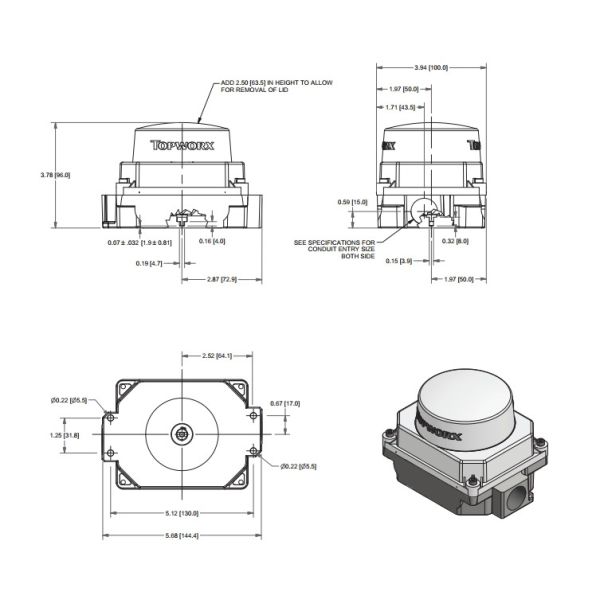

Product drawing:

Topworx Valve Position Indicator TVF-M2WGNPM Intrinsically Safe

Product Details:

Product Tags:

Intrinsically Safe Topworx Valve Position Indicator

Valve Position Indicator TVF-M2WGNPM
